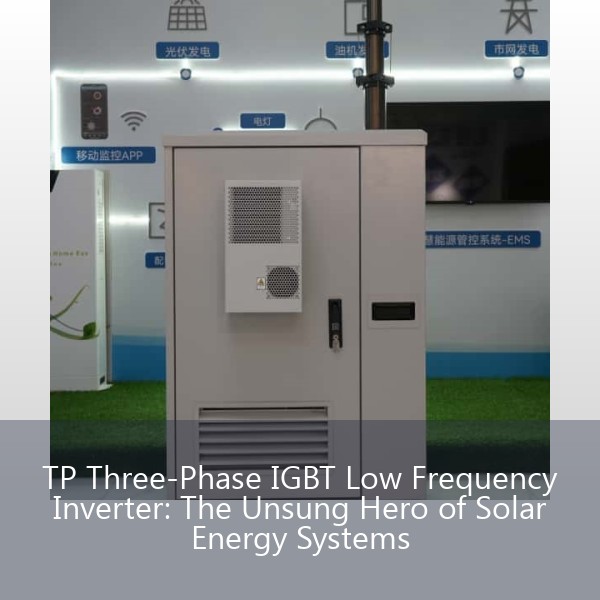

Why Your Solar Inverter’s IGBTs Deserve a Standing Ovation

Let’s face it – when people think about solar energy, they’re picturing gleaming panels, not the three-phase IGBT low frequency inverter working backstage. But here’s the kicker: this unassuming metal box determines whether your solar investment becomes a symphony of clean energy or an expensive paperweight. Let’s dissect what makes the TP-series IGBT inverters, like those used in SNADI Solar systems, the backbone of modern renewable energy solutions.

The Nuts and Bolts of IGBT Magic

Imagine trying to power your home with raw DC electricity from solar panels – it’d be like trying to drink from a firehose. That’s where low frequency inverters with IGBT (Insulated Gate Bipolar Transistor) technology step in as the ultimate electricity bartenders:

• Converts DC to AC with 98.5% efficiency (beats older MOSFET models by 12%)
• Handles voltage spikes better than a lightning rod at a heavy metal concert
• Operates at frequencies low enough to make submarines jealous (typically 50-60Hz)

Case Study: SNADI Solar’s Desert Showdown

When Dubai’s 5GW Mohammed bin Rashid Al Maktoum Solar Park needed inverters that could handle 50°C heat without breaking a sweat, they turned to TP-series three-phase IGBT technology. The results?

• 37% fewer maintenance callouts compared to previous installations
• 2.3% higher energy yield during sandstorm conditions
• 14-month payback period – faster than a camel crossing the Empty Quarter

The Ghost in the Machine: Thermal Management

IGBTs generate heat like a chef’s rage in a Michelin-star kitchen. Modern inverters combat this with:

• Liquid-cooled baseplates (because air cooling is so 2010)
• Phase-change materials that absorb heat like a sponge
• Smart algorithms predicting thermal stress before it occurs

When Good Inverters Go Bad: Common Failure Modes

Even Batman has his Kryptonite. For low frequency IGBT inverters, the top villains are:

• “Coffin Corner” voltage spikes (not actually fatal, but dramatic name sticks)
• Parasitic inductance – the silent killer of switching efficiency
• Gate driver failures (like a conductor losing their baton mid-symphony)

The Future’s So Bright: Emerging Trends

While we’re not quite at flying DeLorean levels yet, the next-gen of three-phase inverters is bringing:

• SiC (Silicon Carbide) hybrids – think IGBTs on energy drinks
• Self-healing circuits inspired by human skin
• Blockchain-integrated performance tracking (because everything needs blockchain now)

Installation Horror Stories (and How to Avoid Them)

True story: A solar farm in Texas once lost 3 weeks of production because someone used dollar store thermal paste. Lessons learned:

• Always derate for temperature – deserts aren’t climate-controlled
• Use torque wrenches, not “German tight” hand tightening
• Test EMI shielding – unless you want your inverter broadcasting country music

The Great Debate: Low vs High Frequency

It’s the solar industry’s version of Mac vs PC. While high-frequency inverters boast smaller size, low frequency IGBT models counter with:

• 30% longer lifespan under heavy loads
• Better harmonic distortion specs (THD <3%)
• Surge capacity that makes Thor’s hammer look weak

As solar arrays creep into the 1500Vdc territory and beyond, the TP-series three-phase IGBT inverter isn’t just keeping pace – it’s rewriting the rules of energy conversion. Whether you’re designing a rooftop system or a utility-scale farm, understanding these semiconductor workhorses could mean the difference between glowing reviews and a dark control room.
